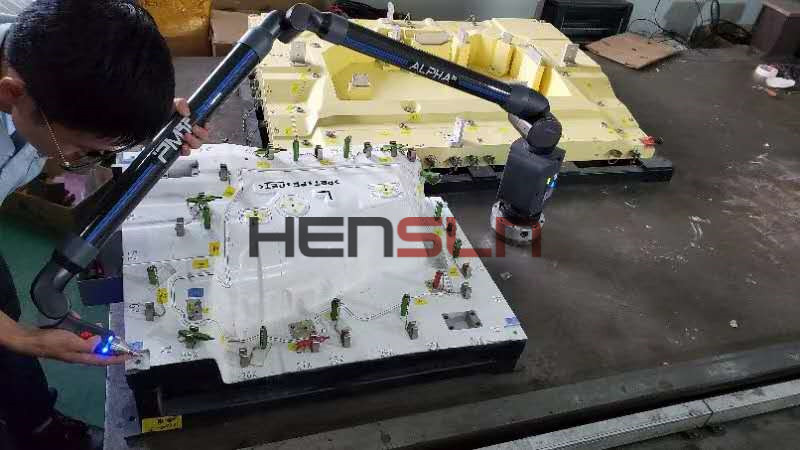

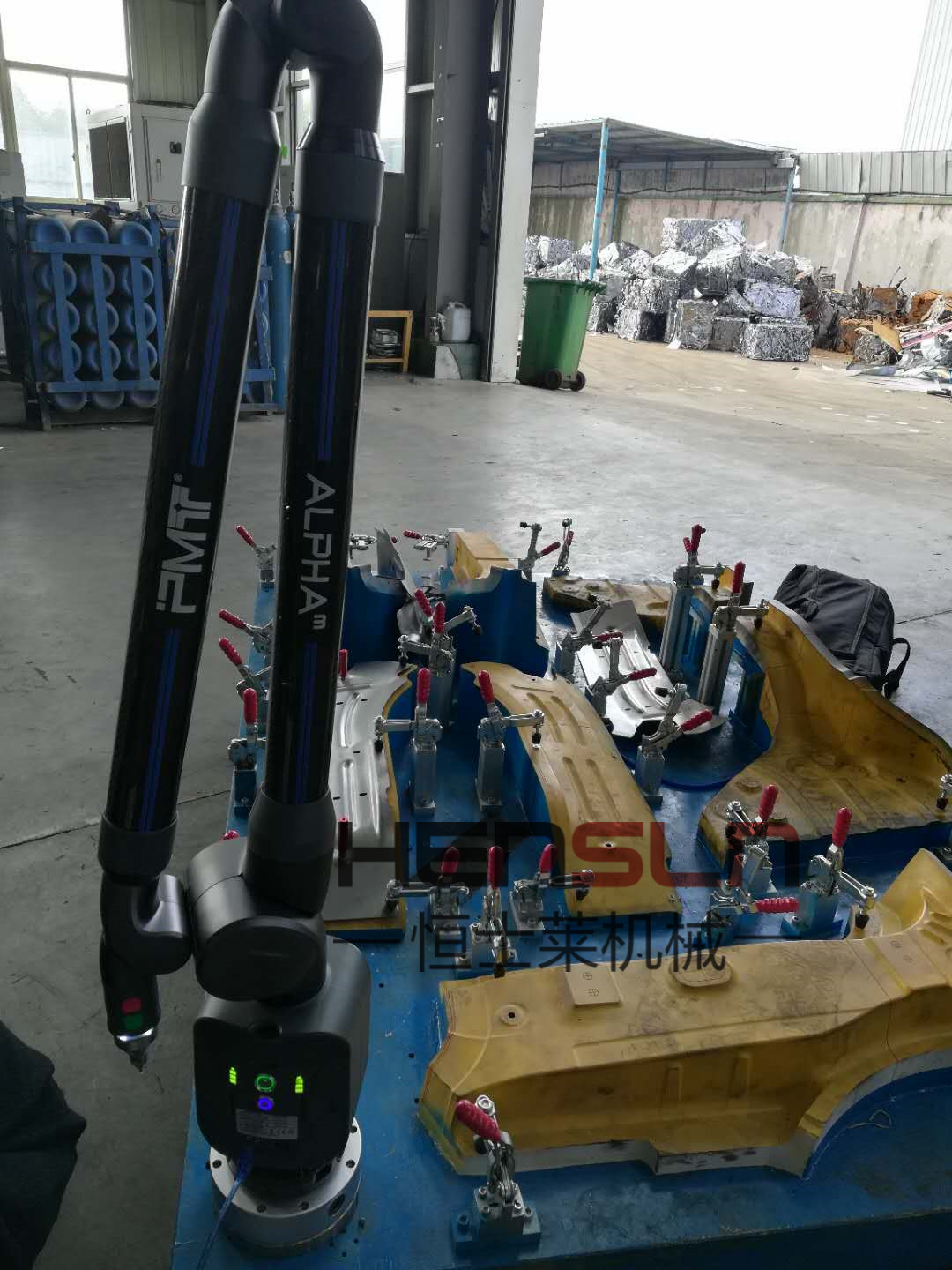

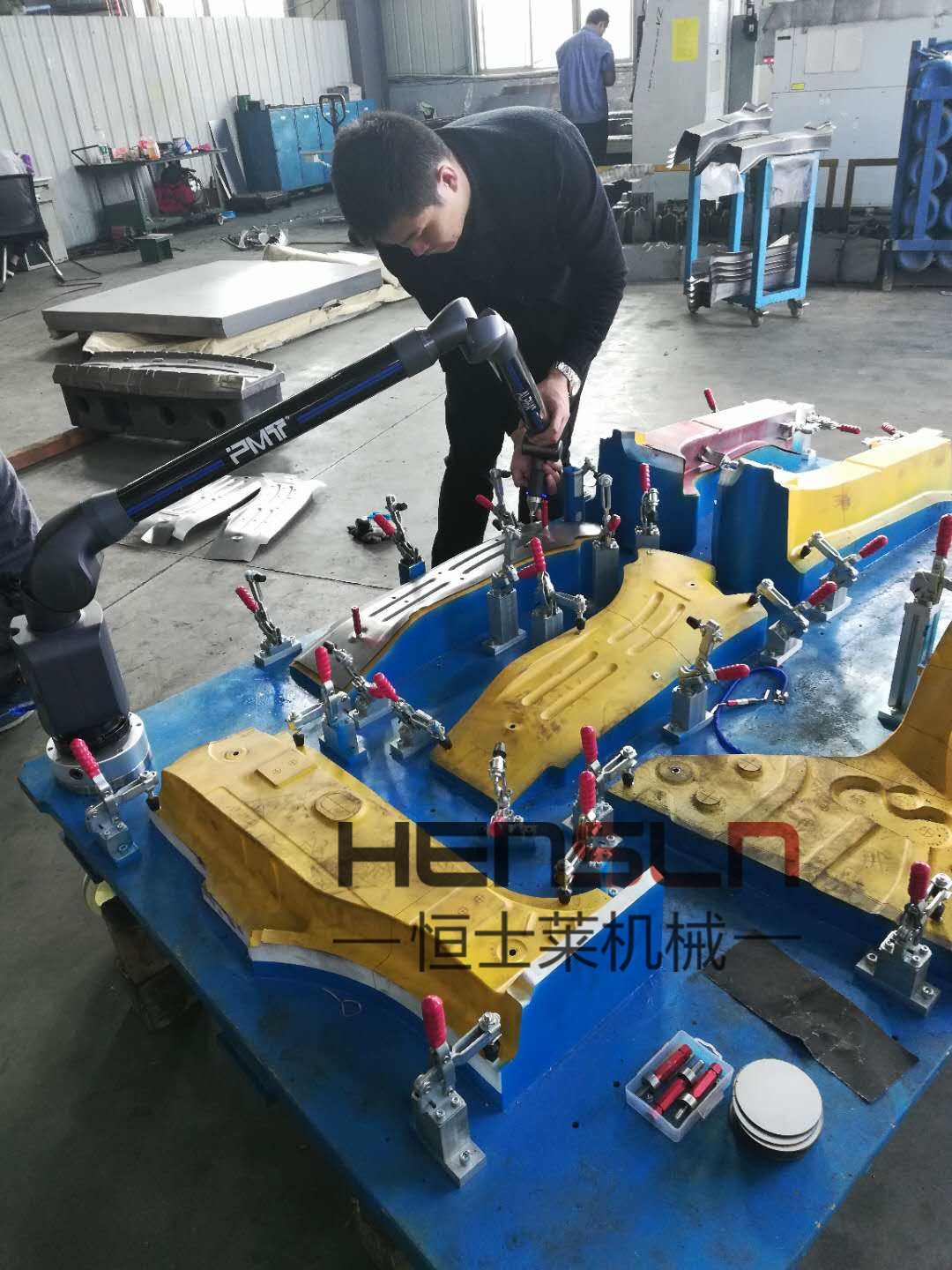

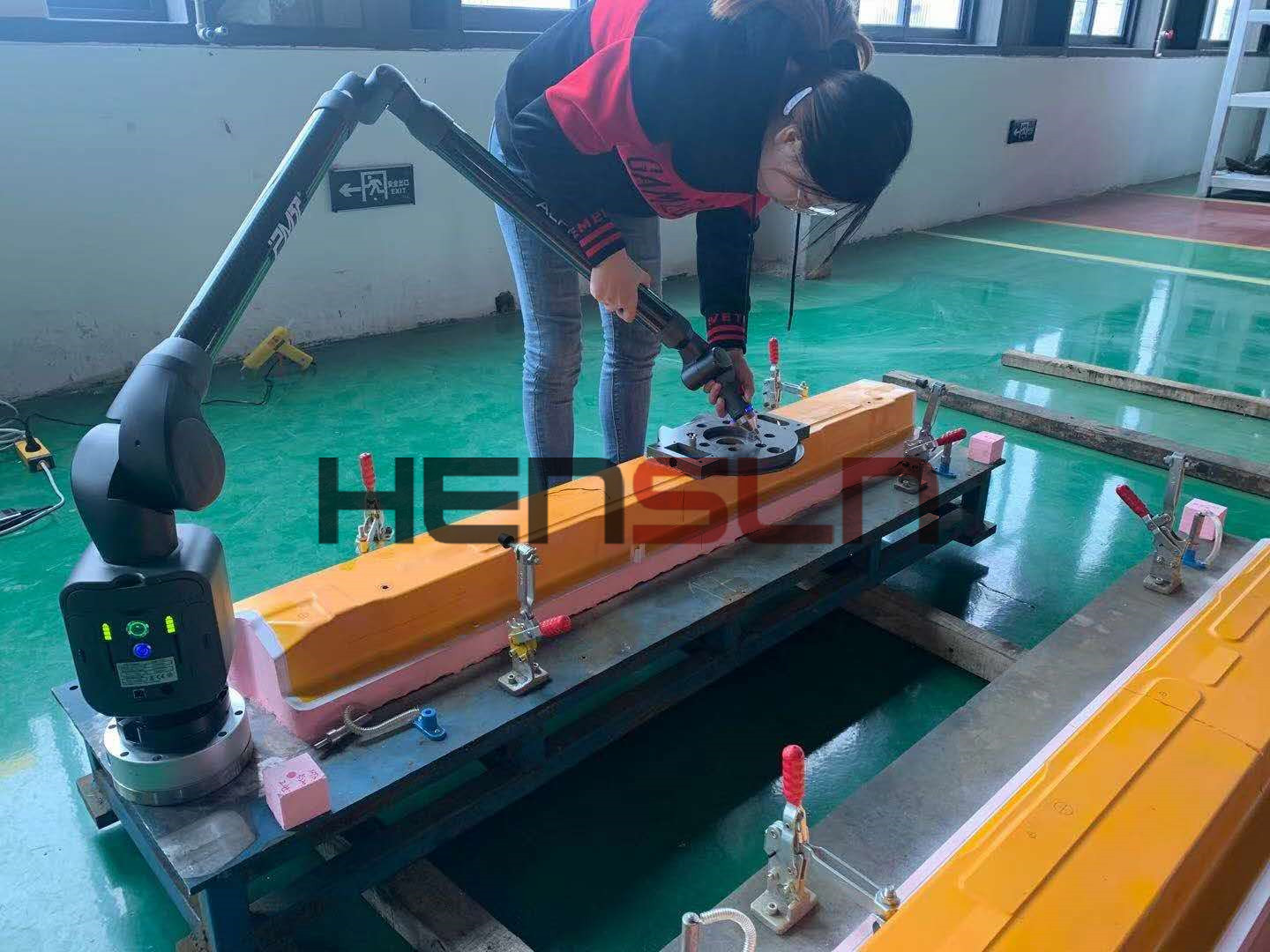

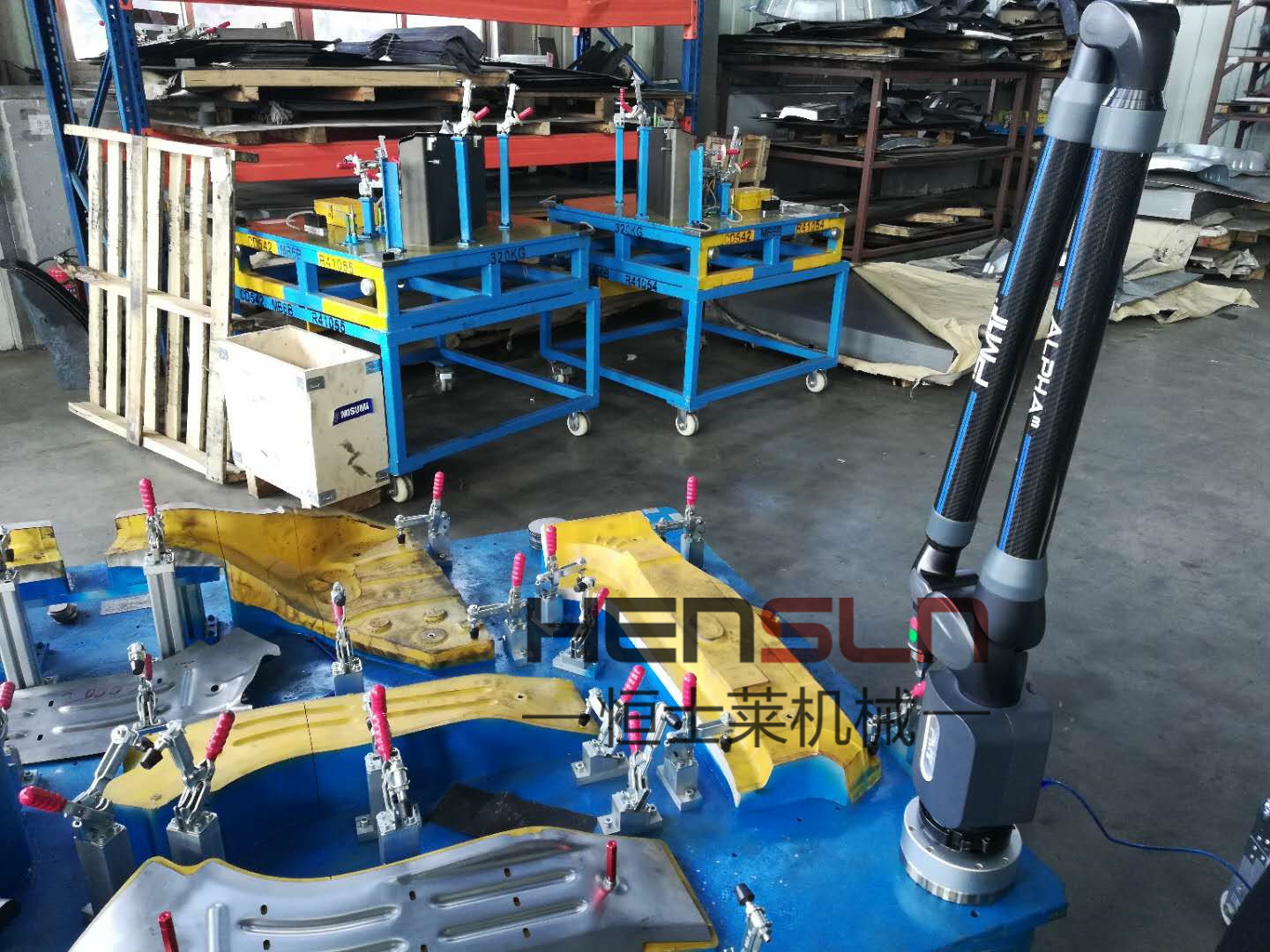

关节臂式三坐标测量臂检具夹具测量

主要提供技术输出，在便携式测量、光学测量、编码器等领域。PMT 有强大的技术底蕴和创新力，一直以来遵循欧洲标准进行产品的研发和制造，积极融入到全球性竞争的过程中，始终秉承以先进技术为导向的理念，传承德国匠心制造精神，顺承质量管理体系，对产品品质的把控不遗余力。

PMT 已在德国、日本设有研发中心，中国设有制造基地，在中国各主要工业城市建立了健全的销售服务网络，保证有效和及时地提供专业技术支持和服务。

未来，我们将继续坚持以技术革新为引导，让测量更加简单和方便为使命，持续为客户创造价值，与客户共同进步，实现公司长远战略目标与社会价值。

PMT is a high-tech company specialized in measurement technology, with full independent R&D and production capability. In the early stage, it mainly provides technology output and core technologies development and customization for many well-known measurement companies in the world, especially in the field of portable measurement, optical measurement, encoders, etc. In the course of its proactive participation in the global competition, PMT has an abundant accumulation of technology and innovation and always been following European standards in product research and development. Oriented by advanced technology all the time, PMT inherits German craftsmanship and quality control system and goes to great lengths to control quality. With the support of Darmstadt University of Technology, PMT has achieved certifications by European standards for its products.

PMT has set up R&D Centers in Germany and Japan and manufacture base in China. It has already established robust service network in major industrial cities in China to guarantee an effective and prompt professional technical support and service to our customers.

Looking into the future, PMT will continue to be guided by technological innovation. Make measurement much easier and more convenient as our mission, we will create a sustainable value for customers, pursue a common progress with them, continuously exceed customer expectations, achieve long term strategic goals and create value to the society.

技术描述Technical Descriptions

描述Description：

1、便携性：主机采用高强度碳纤维材料，轻便易携带（仅8-14公斤左右），能够满足随时随地测量需要。

Portability: the host is made of high-strength carbon fiber, light and easy to carry (only about 8-14 kg), which can meet the needs of measurement anytime and anywhere.

2、软件功能齐全：可进行几何元素、三维坐标、形位公差、、逆向工程、CAD数模与实际零件比对检测、装配，夹具检测、检具检测。

The software has complete functions: geometric elements, three-dimensional coordinates, form and position tolerance, reverse engineering, CAD digital model and actual parts comparison test, assembly, fixture detection, inspection tool detection.

3、测量范围宽：您可以选择1.5米至4.5 米测量范围，并可以通过蛙跳方式扩展到更大的测量范围。

Wide measurement range: you can choose the measurement range from 1.5m to 4.5m, and expand to a larger measurement range by leapfrog.

4、USB数据接口或者无线WIFI连接：采用通用数据线缆与计算机间通过USB数据接口通讯，并且可以实现热插拔；也可以使用无线WIFI连接，实现无线连接测量。

USB data interface or wireless WIFI connection: universal data cable is used to communicate with computer through USB data interface, and hot plug can be realized; wireless WIFI connection can also be used to realize wireless connection measurement.

5、多自由度设计让您实现空间点位置和隐藏点的测量，等臂长设计无测量死角。

Multi degree of freedom design allows you to measure any space point position and hidden point, and the equal arm length design has no dead angle.

6、内置自平衡机构，操作轻巧、灵活。

Internal counter balancing system, easy and flexible in operation.

7、内置可循环充电电池，可在无外接电源环境下工作，一次充电可测量16小时。

Built in rechargeable batteries, can work in the environment without external power supply, and can measure 16 hours at a time.

8、内置高灵敏温度传感器，具有实时温度补偿功能，保证在不同的温度下都能实现高精度的稳定测量。

The built-in high sensitive temperature sensor has the function of real-time temperature compensation to ensure the high-precision and stable measurement under different temperatures.

9、快速箝位安装机构，可提供多种安装形式。

Quick clamping installation mechanism, which can provide a variety of installation forms.

选配项：折叠可升降三脚架

最低高度730mm，最高高度1200mm,承受重量300kg

工作环境温度：-15℃-55℃,适合各种测量臂产品的安装，可移动并且稳定

Folding Adjustable Tripod

Minimum height 730mm, maximum height 1200mm; Max. load weight: 300kg; Operating

temp range: -15℃-55℃, used for all PMTARM, portable and stable.

性能指标 Alpha M Series Performance Specifications

 关节臂式三坐标测量臂检具夹具测量

环境条件要求 Environment Specifications

工作环境温度Operating temp range: 0 °C至40 °C

储存温度Storage temperature :-30˚ -70˚ C

环境湿度Humidity: 95%（非冷凝）

供电系统 Electrical requirements: 110 – 240 VAC

认证Certificate: CE

优势 Advantages

l 内平衡系统 Internal Counter Balancing

l 双能量电池 Double High-energy Batteries

l 等臂设计 Perfect Equal Length Arm Design

l 高速WIFI性能  High-speed WIFI Performance

l 航空碳纤维臂身 Aerospace Grade Carbon-fiber Material

l 较高性价比High Cost Performance
